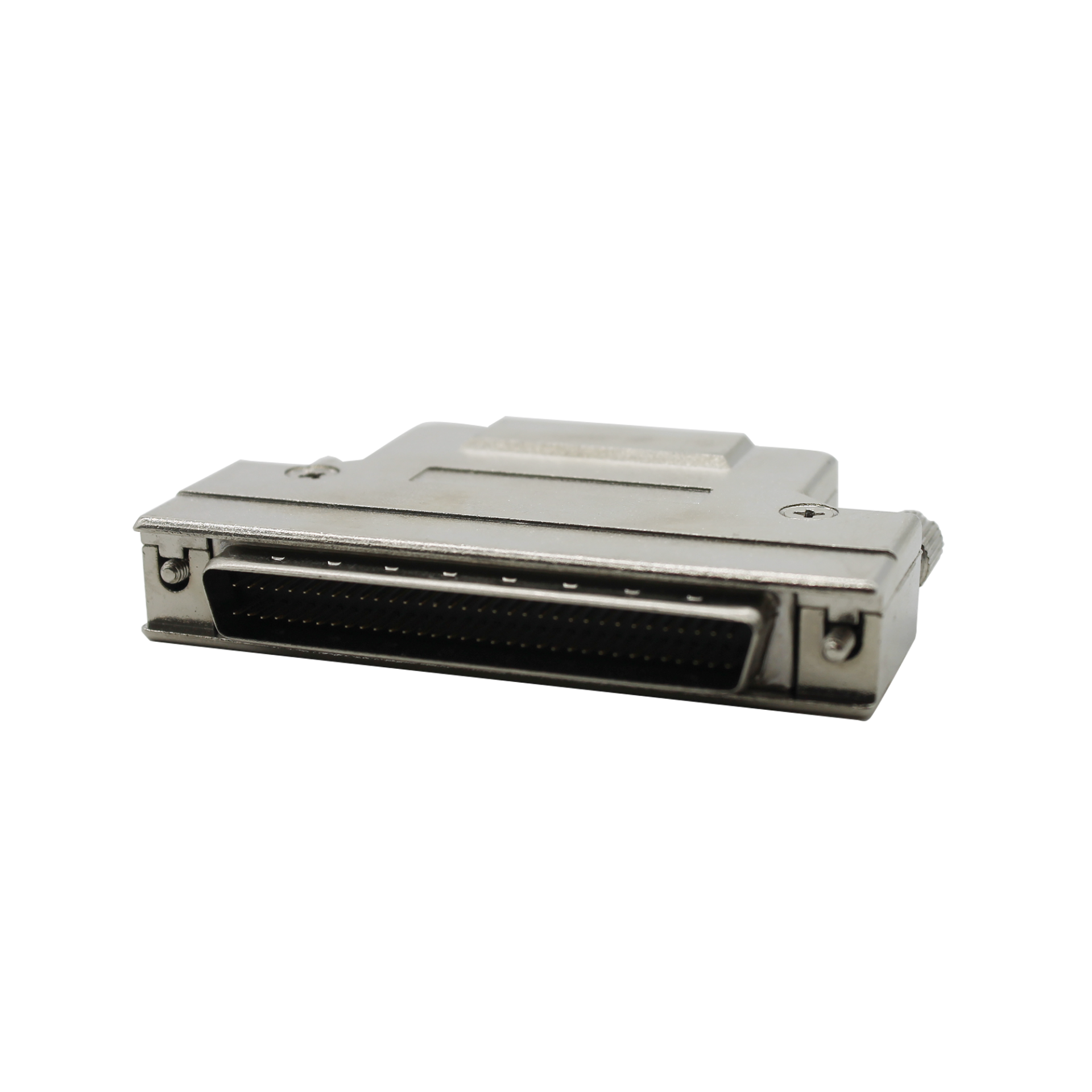

CMC111210 SCSI 68PIN wire end connector, crimping female head, screw
SCSI 68PIN connector, crimping female head, screw
Product parameters
| Current | Max1A | |
| Working voltage | 250V | |
| Operating temperature range | -25～85℃ | |
| Terminal material | Copper alloy | |
| Terminal contact plating material | Palladium nickel underplating gold | |
| Compatible wire gauge | 28AWG | |
| Contact material | Gold-plated copper | |
| Contact resistance | ≤35mΩ | |
| Shell material | Zinc alloy | |
| Fixing screw | UNC 2#-56 | |
Key words:
Classification:
Product Description
SCSI 68PIN cable connector, crimped female design, screw locking structure
Product Features:
1. Uses a screw locking structure for stronger compatibility;
2. Environmentally friendly rubber coating, compliant with RoHS standards, resolutely does not use second-hand materials, ensuring cable yield and lifespan;
4. The connector has an anti-slip design to prevent improper installation.
5. 360-degree ring welding treatment for better shielding effect.
6. Contact resistance: <35 milliohms.
7. Uses crimping technology to secure pins and cables, reliable and aesthetically pleasing.
