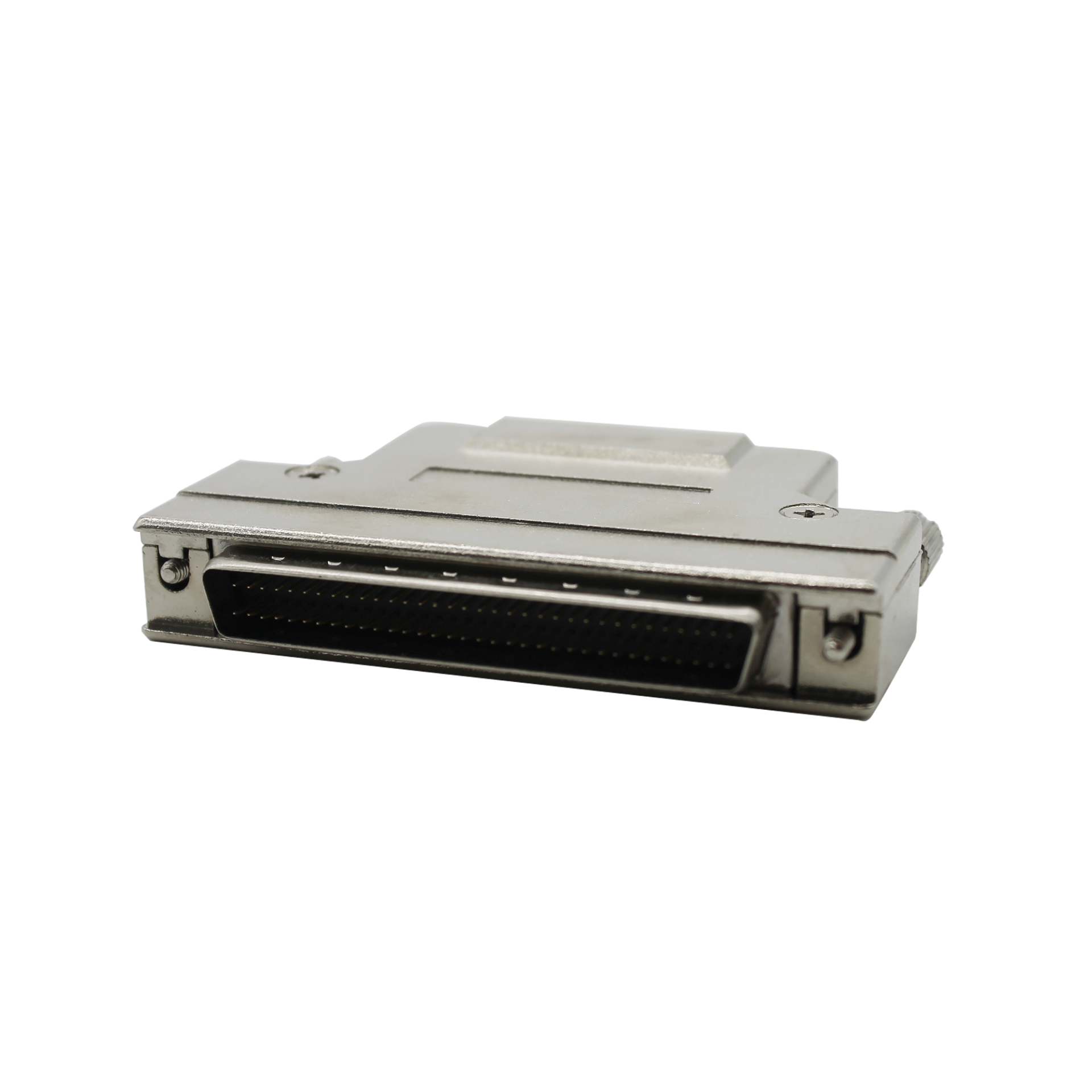

CMC111212 SCSI 68PIN wire-end connector, solder female header, screw
SCSI 68-pin connector, solder female header, screw
Product parameters
| Current | Max1A | |
| Operating voltage | 250V | |
| Operating temperature range | -25～85℃ | |
| Terminal material | Copper alloy | |
| Terminal contact plating material | Palladium nickel underplating, gold plating | |
| Suitable wire gauge | 24-28AWG | |
| Contact material | Gold-plated copper | |
| Contact resistance | ≤35mΩ | |
| Housing material | Zinc alloy | |
| Fixing screws | UNC 2#-56 | |
Key words:
Classification:
Product Description
SCSI 68PIN wire-end connector, solder female header, screw
Product features:
1. Uses screw locking structure, stronger compatibility;
2. Environmentally friendly rubber coating, RoHS compliant, resolutely does not use recycled materials, ensuring cable yield and lifespan;
4. The connector has an anti-slip design to prevent improper installation
5. 360-degree ring welding, better shielding effect
6. Contact resistance: <35 milliohms
7. Uses welding technology to fix pins and cables, reliable and beautiful
