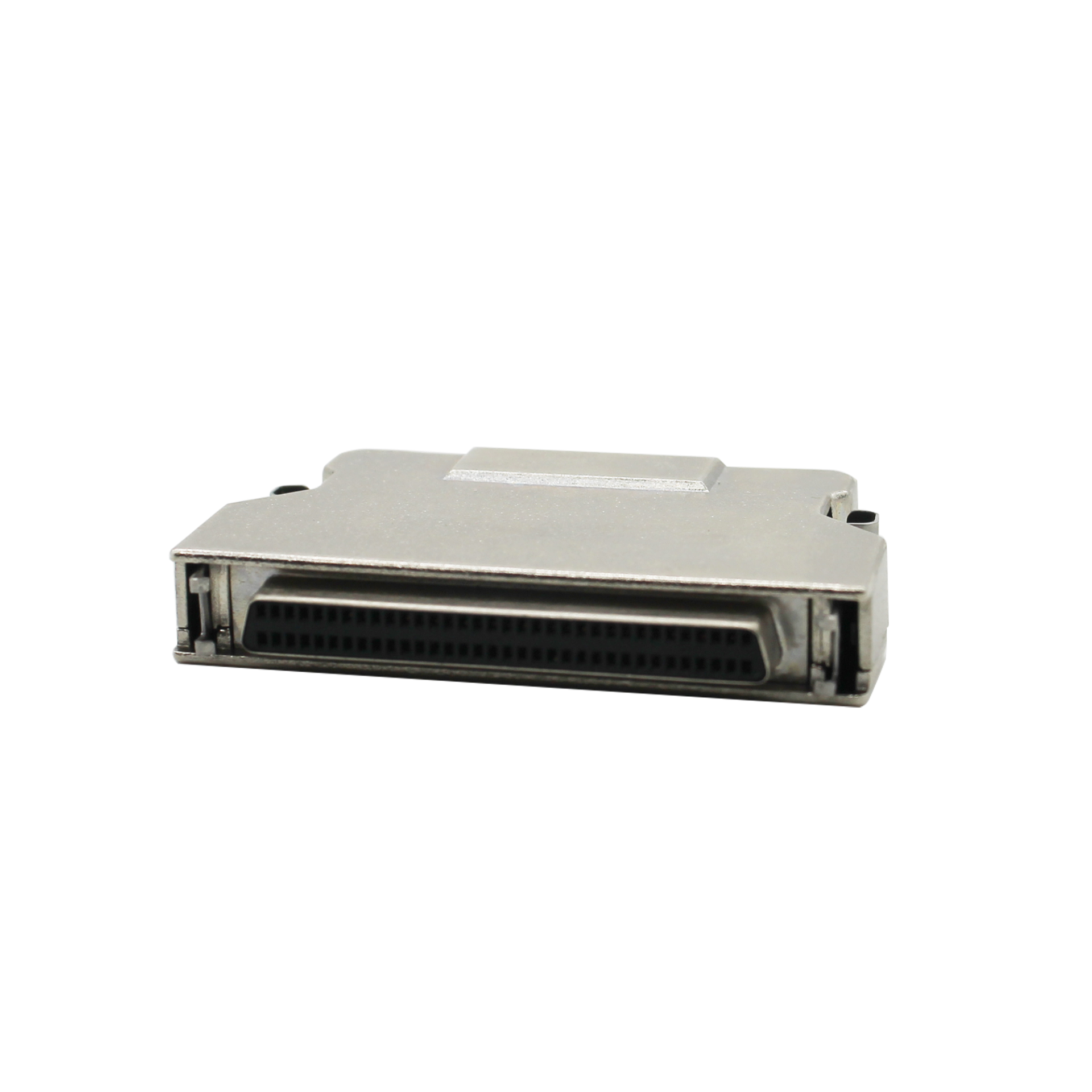

CMC111206 SCSI 68PIN wire end connector, soldering female head, snap-on
SCSI 68PIN connector, soldering female head, snap-in
Product parameters
| Current | Max1A | |
| Operating voltage | 250V | |
| Operating temperature range | -25～85℃ | |
| Terminal material | Copper alloy | |
| Terminal contact plating material | Palladium-nickel underplating gold | |
| Compatible wire gauge | 28AWG | |
| Contact material | Gold-plated copper | |
| Contact resistance | ≤35 mΩ | |
| Shell material | Zinc alloy | |
Key words:
Classification:
Product Description
SCSI 68PIN cable connector, soldered female design, snap-lock structure
Product Features:
1. Uses a snap-lock structure, allowing the connector to be locked without tools;
2. Environmentally friendly rubber coating, compliant with RoHS standards, resolutely does not use second-hand materials, ensuring cable yield and lifespan;
4. The connector has an anti-slip design to prevent improper installation;
5. 360-degree ring soldering treatment for better shielding effect;
6. Contact resistance: <35 milliohms;
7. Uses soldering technology to secure pins and cables, reliable and aesthetically pleasing.
