CMC141201 TF-B68 Junction Box, DIN rail mountable
TF-B68 Junction Box, DIN Rail Mountable
Product Parameters
| Specifications/Model | CMC141201 | |
| Type | TF-B68 Junction Box, DIN Rail Mountable | |
| Maximum Current | 1A | |
| Operating Voltage | 250V | |
| Connector Parameters | Type | SCSI 68-Pin Male Connector |
| Rated Voltage | 250V | |
| Rated Current | 1A | |
| Contact Material | Gold-Plated Copper | |
| Contact Resistance | ≤35mΩ | |
| Mounting Method | 2-56 Screw | |
| Terminal Parameters | Wiring Method | Screw Type |
| Rated Voltage | 300V | |
| Rated Current | 5A | |
| Wire Size | 0.2-2.5mm² | |
| Screw Torque | 0.5-0.6Nm | |
| Contact Material | Tin-Plated Copper | |
Key words:
Classification:
Product Description

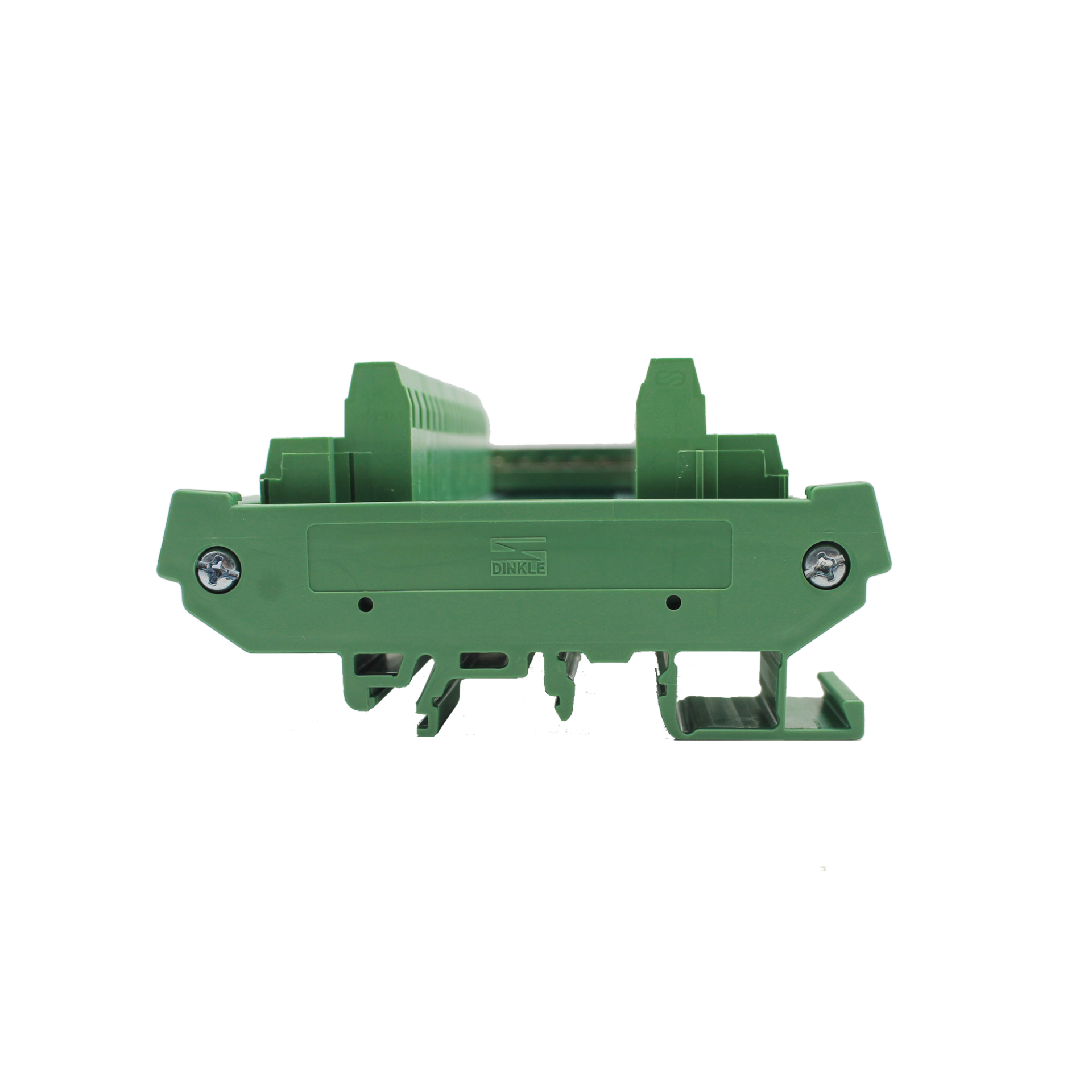

TF-B68 junction box, with a built-in 68-pin SCSI male connector, can be mounted on a rail. Its reliable slot design allows for installation in any position.
