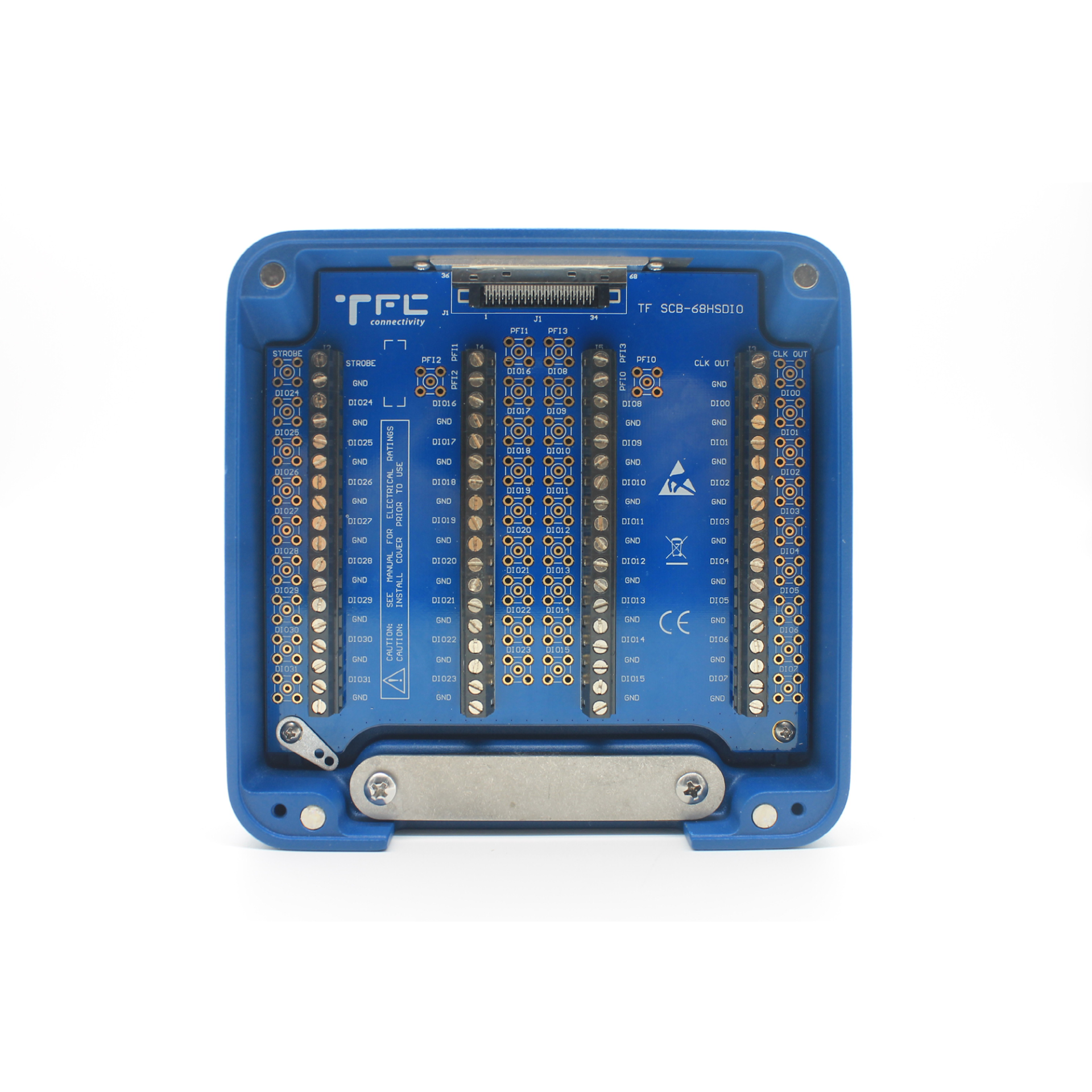

TF-SCB68HSIO 68-pin high-speed shielded interface box
68-pin high-speed shielded interface box
Product Parameters
| Specifications/Model | TF-SCB68HSIO | |
| Type | 68-pin high-speed shielded interface box | |
| Maximum Current | 0.5A | |
| Operating Voltage | 150V | |
| Connector Parameters | Type | VHDCI 68-pin female connector |
| Rated Voltage | 150V | |
| Rated Current | 0.5A | |
| Contact Material | Gold-plated copper | |
| Contact Resistance | ≤35mΩ | |
| Mounting Method | M2.0 screw | |
| Terminal Parameters | Wiring Method | Screw type |
| Rated Voltage | 300V | |
| Rated Current | 5A | |
| Wire Size | 0.2-2.5mm² | |
| Screw Torque | 0.5-0.6Nm | |
| Contact Material | Tin-plated copper | |
Key words:
Classification:
Product Description
68-pin high-speed shielded interface box, used with a 68-pin cable for PXI signal connection. Widely used in testing laboratories and the initial design of test equipment.
Product Features:
1. Contact points have built-in wire numbers, consistent with the cable wiring sequence, facilitating wiring.
2. The rear of the junction box has a built-in wire clamp to secure the cable and prevent it from falling off.
3. It has a built-in metal shield for good shielding performance, effectively preventing crosstalk.
4. The shield uses a magnetic adsorption design, making it easier to open and close, facilitating maintenance.
