CMC141205 TF-B/M junction box, unshielded
TF-B68 Junction Box, DIN Rail Mountable
Product Parameters
| Specifications/Model | CMC141205 | |
| Type | TF-B/M Junction Box, Unshielded | |
| Maximum Current | 1A | |
| Operating Voltage | 250V | |
| Connector Parameters | Type | SCSI 68-Pin Male Connector |
| Rated Voltage | 250V | |
| Rated Current | 1A | |
| Contact Material | Gold-Plated Copper | |
| Contact Resistance | ≤35mΩ | |
| Mounting Method | 2-56 Screw | |
| Terminal Parameters | Wiring Method | Screw Type |
| Rated Voltage | 300V | |
| Rated Current | 5A | |
| Wire Size | 0.2-2.5mm² | |
| Screw Torque | 0.5-0.6Nm | |
| Contact Material | Tin-Plated Copper | |
Key words:
Classification:
Product Description

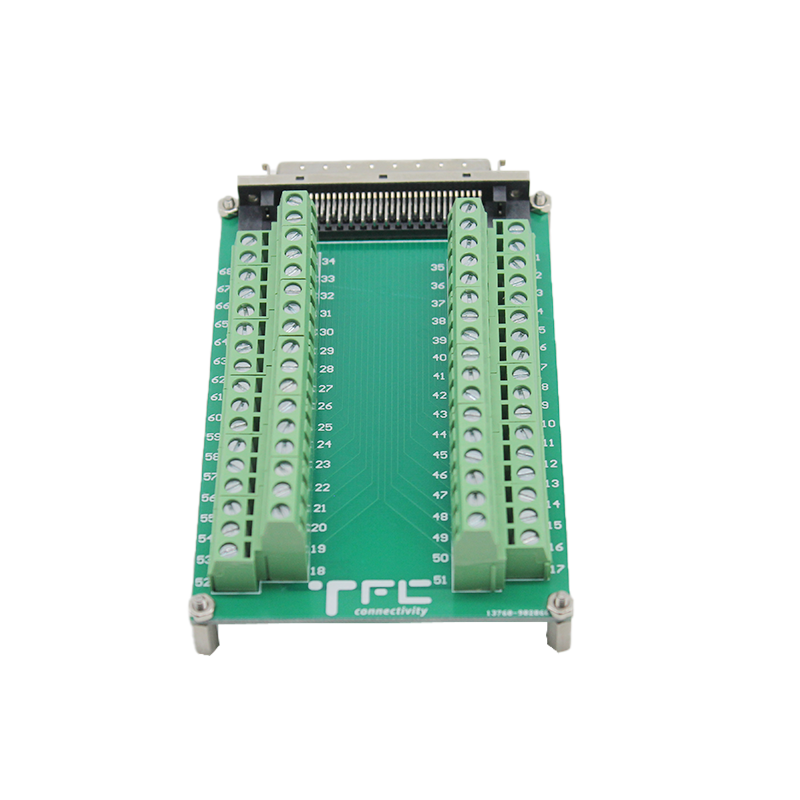

TF-B/M junction box, unshielded, with built-in 68-pin SCSI male connector and four mounting feet. It can be mounted on a panel or placed directly on a desktop.
